Series: MPD Series
MPD-N-330 Spring rewind “Dual Hydraulic” hose reel10mm ID, L= 9m
Spring rewind “Dual Hydraulic” hose reel. Low Pressure. Capacity 9m x 10mm ID hose.
Series: MPD Series
MPD-N-330 Spring rewind “Dual Hydraulic” hose reel10mm ID, L= 9m
Spring rewind “Dual Hydraulic” hose reel. Low Pressure. Capacity 9m x 10mm ID hose.
- Description
- Features
- Dimensions (mm)
- Shipping
- Download
COXREELS® MPD Series “Dual Hydraulic” hose reels have similar features to their related series, but have been redesigned to handle dual hydraulic applications. spring driven retraction reel at 3,000 PSI.

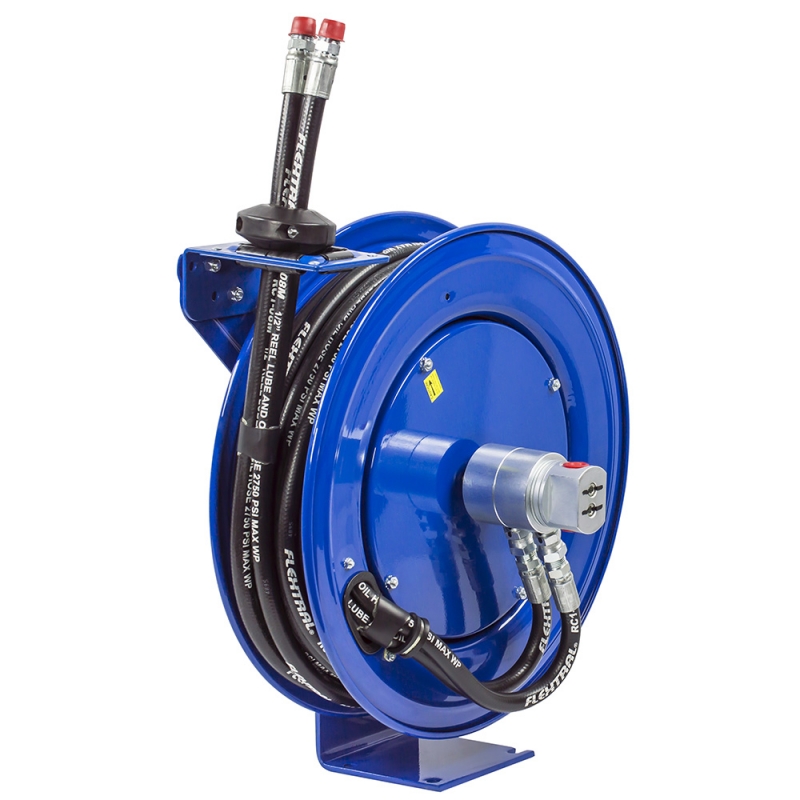

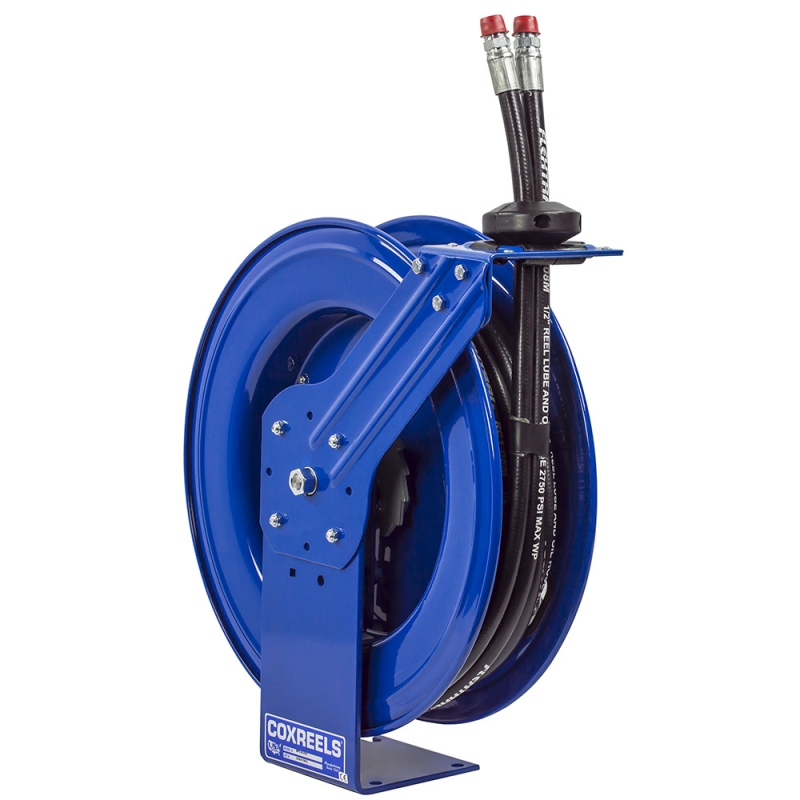

Model shown: MPD-N-430
| Hose ID | 10 |
|---|---|
| Hose OD | 17 |
| Hose Length | 9 |
| Working Pressure | 210 |
| Inlet | 3/8″ x 3/8″ NPT (F) |
| Outlet | 3/8″ x 3/8″ NPT (F) |
| Hose/Cable | Twin hose, 1 Wire Braid, Oil |
| Media | Hydraulic Oil |
| With hose | Yes |
| Leader hose | No |
| Hose stop | Yes |
| Temperature (Max) | 99°C |

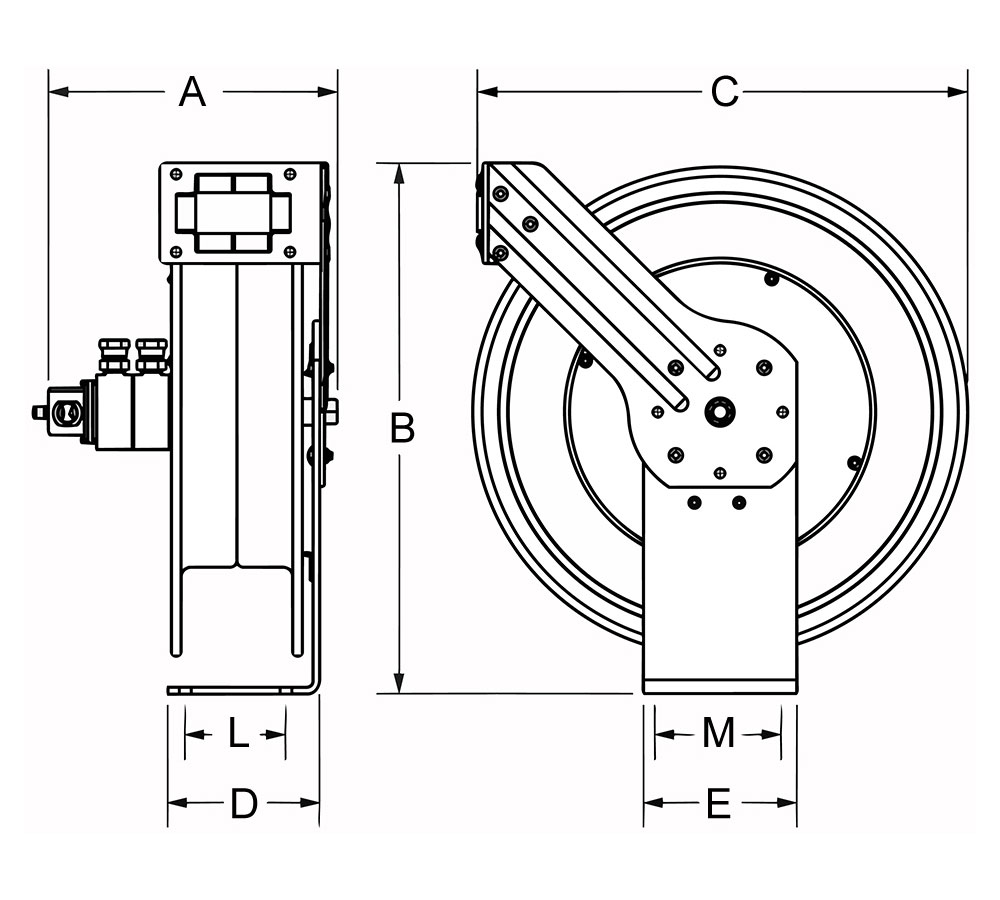

| Dim A | 298 |
|---|---|
| Dim B | 533 |
| Dim C | 498 |
| Dim D | 152 |
| Dim E | 152 |
| Dim L | 102 |
| Dim M | 127 |
| Attributes | Value |
|---|---|
| Weight | 35 kg |
| Dimensions | 57 × 33 × 61 cm |
