1185-1124 Manual Rewind Hose Reel, 38mm ID, L= 15m
Large capacity, manual rewind hose reel. For Air, Water or Oil hose. Capacity 15m x 38mm ID hose. No Hose
- Description
- Features

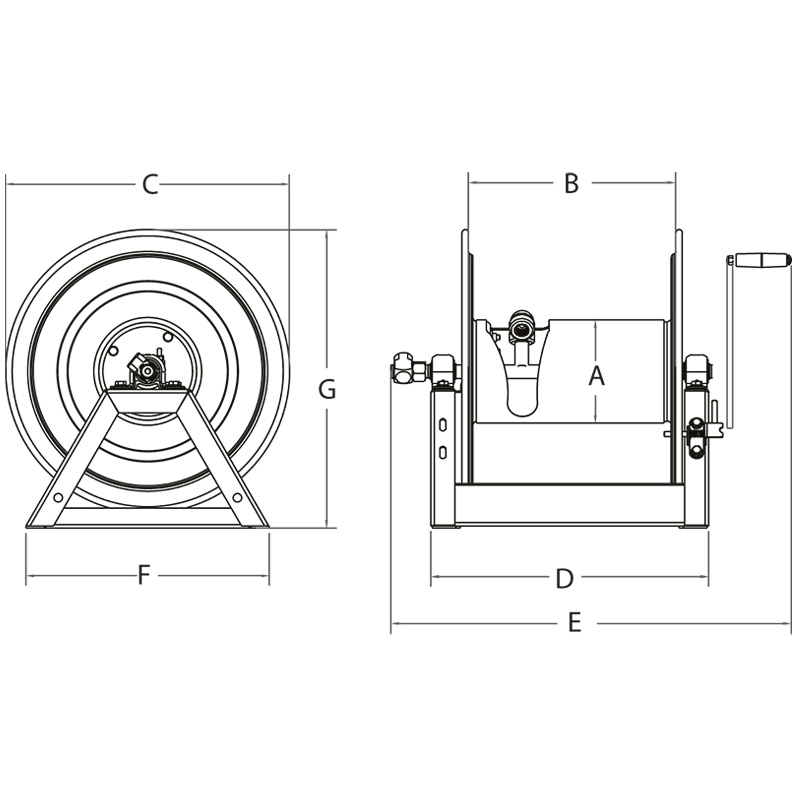

- Dimensions (mm)
- Shipping
- Download
COXREELS® 1185 Series hand crank hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels’ exclusive low profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap. The sturdy all welded “A” frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

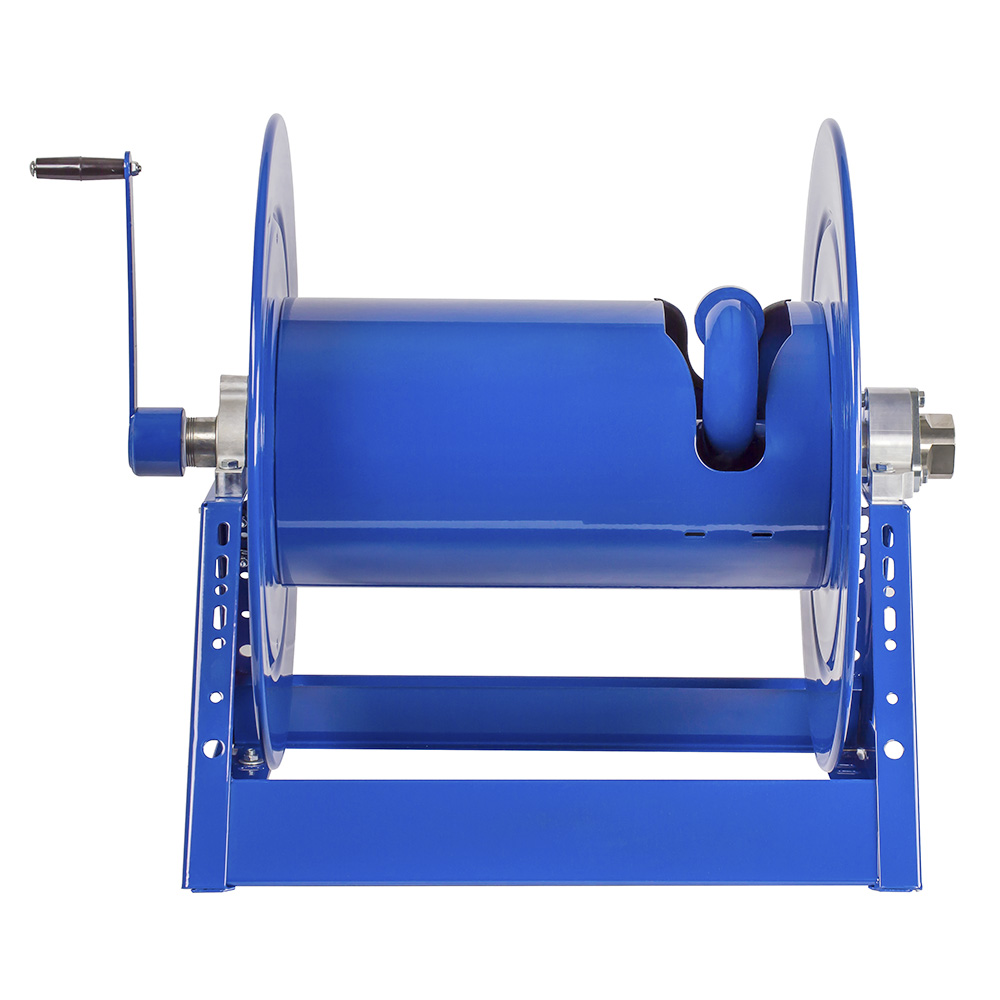

Model shown: 1185-2024
| Hose ID | 38 |
|---|---|
| Hose OD | 51 |
| Hose Length | 15 |
| Working Pressure | 41 |
| Inlet | 1.5″ NPT (F) |
| Outlet | 1.5″ NPT (F) |
| With hose | No |
| Leader hose | No |
| Dim A | 267 |
|---|---|
| Dim B | 292 |
| Dim C | 610 |
| Dim D | 435 |
| Dim E | 635 |
| Dim F | 564 |
| Dim G | 635 |
| Attributes | Value |
|---|---|
| Weight | 35 kg |
| Dimensions | 75 × 64 × 68 cm |
